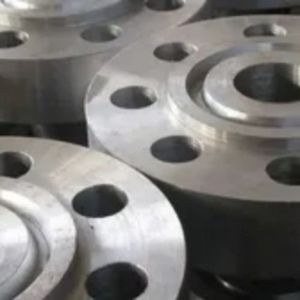

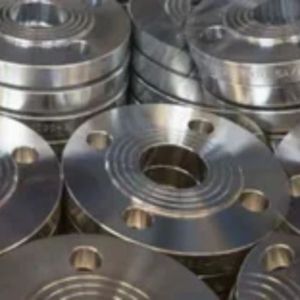

Ting Flanges, based in Manila, Philippines, is a reputable manufacturer and supplier of top-notch flanges, including the S235JRG2 Flanges. Known for their precision engineering and durability, Ting Flanges ensures that their products meet international standards, providing secure and reliable connections in industrial piping systems. Made from structural carbon steel, S235JRG2 Flanges boast excellent strength, weldability, and toughness, making them perfect for various industrial and construction applications. Serving sectors like water treatment, HVAC, structural engineering, and manufacturing, Ting Flanges has built a solid reputation for delivering durable, cost-effective, and high-performance flange solutions for a wide array of industrial needs.
The S235JRG2 flange is composed primarily of carbon steel with a balanced mix of manganese, phosphorus, and sulfur, enhancing its weldability and strength. Mechanically, it boasts a tensile strength of 360-510 MPa and a yield strength of 235 MPa, providing reliable durability for various industrial applications. Key advantages include excellent machinability, ease of welding, and compliance with EN 10025 standards, making it suitable for structural and piping uses. Its high performance, combined with affordability, makes S235JRG2 a popular choice in construction and engineering projects.

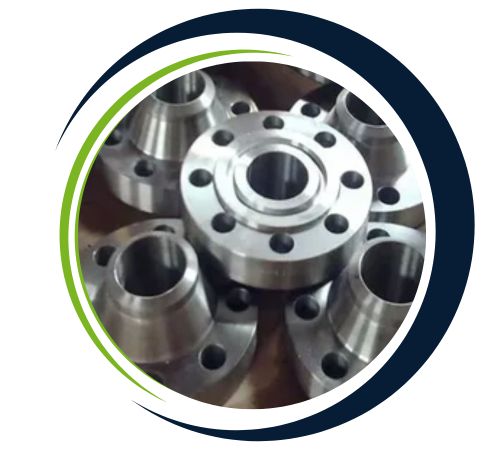

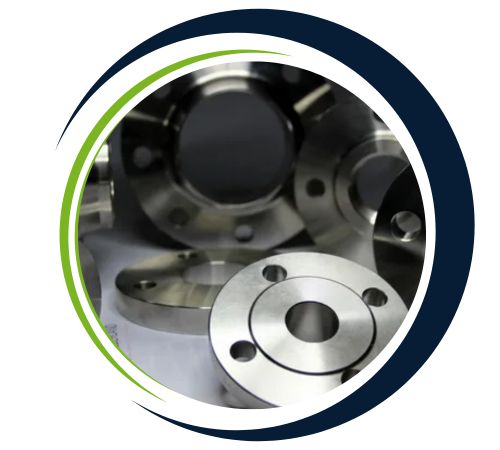

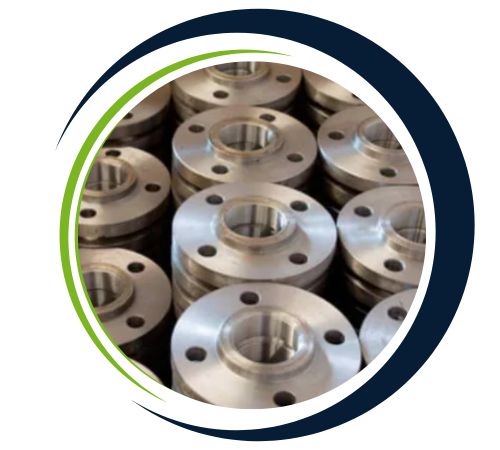

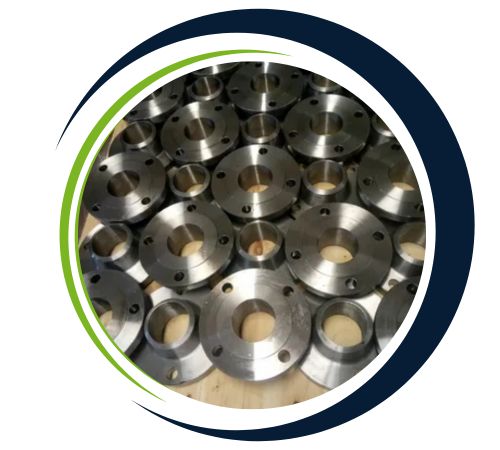

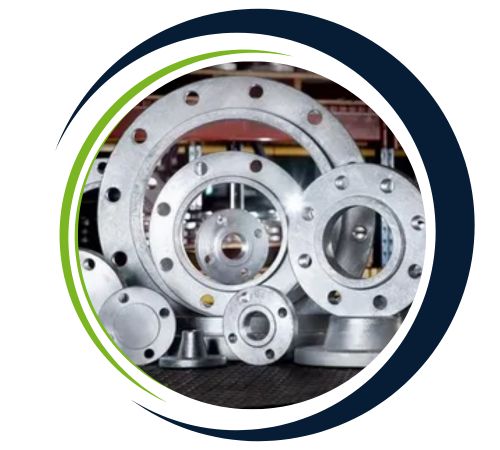

Ting Flanges, a leading supplier in Manila, Philippines, offers an extensive selection of S235jrg2 Flange, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | API7S-15, API7S-43, API605, ANSI/ASME B16.5, B16.47 Series A & B, B16.48, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, EN1092 |
| Pressure Rating ANSI | 600 LBS, 900 LBS, 150 LBS, 2500 LBS, 300 LBS, 1500 LBS |
| Pressure Calculation in DIN | 16Bar 6Bar 25Bar 40Bar 10Bar / PN10 PN16 PN6 PN25 PN64 PN40 |
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Anti-rust Paint, Zinc Plated,Oil Black Paint, Cold and Hot Dip Galvanized, Yellow Transparent |
| Most common types | Forged / Threaded / Screwed / Plate |
| C | Si | Mn | Ni | P | S | Cr | Mo | Al | – |
| max 0.2 | max 0.55 | max 1.4 | max 0.3 | max 0.045 | max 0.045 | max 0.3 | max 0.08 | min 0.02 | Cr+Mo+Ni < 0.48 |
| Minimum yield strength Reh MPa | Tensile strength Rm MPa | Minimum elongation – A Lo = 5,65 * √So (%) | Notch impact test | |||||||||||
| Steel grade | Nominal thickness mm | Nominal thickness mm | Nominal thickness mm | Temperature | Min. absorbed energy | |||||||||
| ≤16 | >16 ≤40 | >40 ≤63 | >63 ≤80 | >80 ≤100 | >100 ≤125 | >3 ≤100 | >100 ≤125 | >3 ≤40 | >40 ≤63 | >63 ≤100 | >100 ≤125 | °C | J | |
| S235JR | 235 | 225 | 215 | 195 | 360-510 | 350-500 | 26 | 25 | 24 | 22 | +20 | 27 | ||
In industries that require structural carbon steel flanges for moderate-pressure piping systems, S235JRG2 Flanges are a popular choice. They are particularly well-suited for water pipelines, HVAC systems, general manufacturing, construction projects, and other industrial applications. These flanges create secure connections for pipes, valves, pumps, and pressure vessels, ensuring operational reliability and safety.
Yes, we offer custom sizes for S235jrg2 Flange to meet specific project needs. Our team at Ting Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@tingflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
