Ting Flanges is a reliable manufacturer and supplier who is proudly located in Manila, Philippines, and is committed to the production of top-quality C22.8 flanges. Ting Flanges, known for accuracy in engineering and great workmanship, introduces to the market a complete line of flange products that are up to international standards and meet industrial sector needs. The company, with an extensive list of clients, is able to provide industrial flanges of the best quality that are safe and durable for sectors like oil and gas, petrochemical, water treatment, and power generation. Together with quality assurance and leading-edge technology in the production of pipes, the company assures that its C22.8 flanges can withstand any tough industrial conditions and still maintain their integrity, surface finish, and functionality thus making Ting a preferred partner for quality piping components throughout the Philippines and across the globe.
C22.8 flanges are fabricated from the best of carbon steel materials ensuring the products are resistant to both pressure and temperature. The material structure enables the product not only to be strong but also to be hard with good welding ability to allow easy installation thus secure and stable joints. These flanges also have high tensile and high yield strength along with good impact resistance and elongation properties. Besides that, high toughness of the flanges enables them to be used in situations which stress and vibration are inevitable. On top of that, the flanges could use a great deal of protection by oxidizing and corroding and still, be able to last long without maintenance in hard industrial situations.

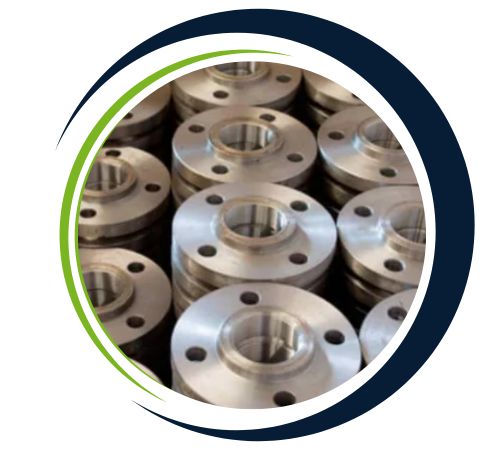

Ting Flanges, a leading supplier in Manila, Philippines, offers an extensive selection of C22.8 Flange, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Specifications | C22.8 |
| ASME B16.5 Carbon Steel C22.8 Flanges size range | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Carbon Steel C22.8 Flanges Standards | ANSI/ASME B16.5, B16.48, BS4504, B16.47 Series A & B, EN-1092, BS 10, DIN, ASME Flanges, ANSI Flanges, DIN Flanges, BS Flanges, GOST Flanges,EN Flanges |
| Carbon Steel C22.8 Flanges Standard DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| Carbon Steel C22.8 Flanges Standard ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Carbon Steel C22.8 Flanges Standard UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Carbon Steel C22.8 Flanges Standard JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| Carbon Steel C22.8 Flanges Standard EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Main Types | Forged / Threaded / Screwed / Plate |
| Flange supporting material | Gasket, Ring Joint, Flange Bolts |
| Element / Component | Composition % |
| Carbon ( C ) | 0.18 – 0.23 |
| Manganese ( Mn ) | 0.40 – 0.90 |
| Phosphorus ( P ) | 0.035 max |
| Sulphur ( S ) | 0.030 max |
| Silicon ( Si ) | 0.40 max |
| Aluminium ( Al ) | 0.015 – 0.050 |
| Chromium ( Cr ) | 0.30 max |
| Items | Value |
| Yield Strength ReH N/mm2 | 240 min |
| Tensile Strength Rm N/mm2 | 410 – 540 |
| Elongation ( A ) | 25% min |
| Impact Test ( J ) | 44 min |
The use of C22.8 flanges can be seen in such industries as oil and gas, chemical processing, power generation, and water treatment systems. They are perfect for use in high-pressure and high-temperature situations such as steam, gas, and fluid pipelines. The flanges are the main components that ensure non-leaking and strong connections between pipes, valves, and others, which consequently improve the effectiveness as well as the safety of the system. Because of their strength, weldability, and long life, C22.8 flanges are the first choice for process piping, refineries, and heavy machinery installations where dependable performance and long-term resistance to wear and corrosion are among the most important factors.
Yes, we offer custom sizes for C22.8 Flange to meet specific project needs. Our team at Ting Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@tingflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
