Ting Flanges is a reputable manufacturer and supplier of Loose Flanges based in Manila, Philippines. They pride themselves on delivering high-quality products that meet international standards. With years of experience in the flange industry, Ting Flanges offers reliable and durable solutions for a variety of industrial applications. Their Loose Flanges are designed for easy alignment and secure fitting of pipes, making them perfect for installations that prioritize maintenance. Ting Flanges emphasizes precision engineering, top-notch material quality, and customer satisfaction, ensuring that every product performs exceptionally and lasts long, even in tough environments.
Loose Flanges are generally crafted from carbon steel, stainless steel, or alloy steel, which guarantees durability, resistance to corrosion, and strength. These flanges boast impressive tensile and yield strength, along with high toughness and ductility, making them well-suited for handling pressure and temperature fluctuations. The steel composition often includes elements like chromium, nickel, and molybdenum to boost their anti-corrosive properties. Their mechanical features allow for easy assembly and disassembly without harming the connected pipes, making them a go-to choice for systems that require regular maintenance and flexible installation.
| Size | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF) |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |

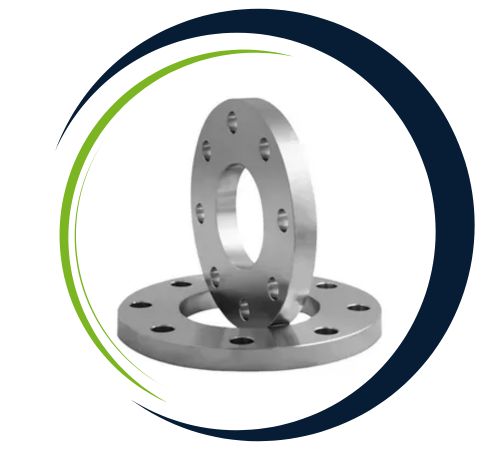

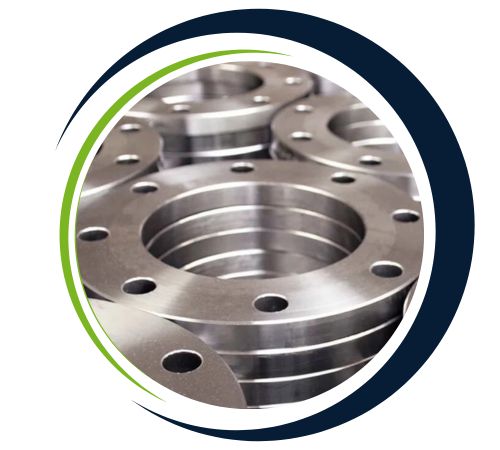

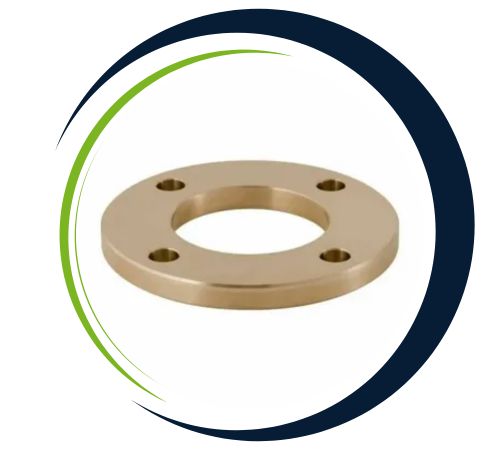

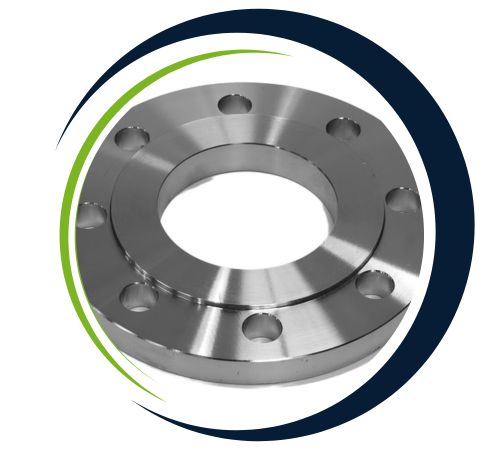

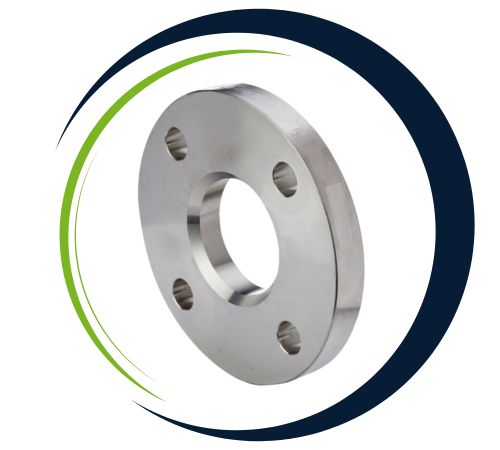

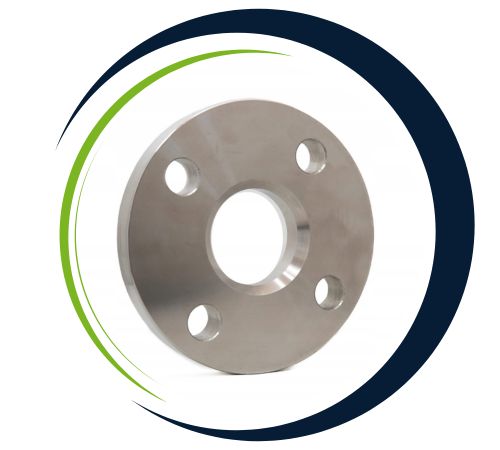

| Material | Incoloy Loose Flange, Brass Loose Flange, SMO 254 Loose Flange, AISI 4130 Loose Flange, Alloy 20 Loose Flange, Stainless Steel Loose Flange, Duplex Steel Loose Flange, Copper Nickel Loose Flange, Titanium Loose Flange, Hastelloy Loose Flange, Inconel Loose Flange, Super Duplex Loose Flange, Monel Loose Flange, Nickel Alloy Loose Flange. |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Ting Flanges, a leading supplier in Manila, Philippines, offers an extensive selection of Loose Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Loose Flanges find their place in industries where piping systems need to be frequently dismantled or inspected. They are particularly useful in chemical plants, oil refineries, water treatment facilities, and power generation units, where ease of alignment and maintenance is key. Their design allows for rotation to align bolt holes, making them ideal for low-pressure and non-critical pipelines. Additionally, they are utilized in marine, gas, and plumbing systems where corrosion resistance and flexibility are vital. Loose Flanges are appreciated for their ability to simplify pipe connections while ensuring strength and sealing integrity.
| Nominal Bore | Dia. (D) | Thick. (E) | Dia. (B) | Dia. (A) | Height (H) | Nbr | Holes | Dia. (C) |
|---|---|---|---|---|---|---|---|---|
| 1/2″ | 95 | 14.3 | 38 | 22.9 | 22 | 4 | 15.87 | 66.7 |
| 3/4″ | 115 | 15.9 | 48 | 28.2 | 25 | 4 | 19.05 | 82.6 |
| 1″ | 125 | 17.5 | 54 | 34.9 | 27 | 4 | 19.05 | 88.9 |
| 1 1/4″ | 135 | 19.1 | 64 | 43.7 | 27 | 4 | 19.05 | 98.4 |
| 1 1/2″ | 155 | 20.7 | 70 | 50.0 | 30 | 4 | 22.22 | 114.3 |
| 2″ | 165 | 22.3 | 84 | 62.5 | 33 | 8 | 19.05 | 127.0 |
| 2 1/2″ | 190 | 25.4 | 100 | 75.4 | 38 | 8 | 22.22 | 149.2 |
| 3″ | 210 | 28.6 | 117 | 91.4 | 43 | 8 | 22.22 | 168.3 |
| 3 1/2″ | 230 | 30.2 | 133 | 104.1 | 44 | 8 | 22.22 | 184.2 |
| 4″ | 255 | 31.8 | 146 | 116.8 | 48 | 8 | 22.22 | 200.0 |
| 5″ | 280 | 35.0 | 178 | 144.4 | 51 | 8 | 22.22 | 235.0 |
| 6″ | 320 | 36.6 | 206 | 171.4 | 52 | 12 | 22.22 | 269.9 |
| 8″ | 380 | 41.3 | 260 | 222.2 | 62 | 12 | 25.40 | 330.2 |
| 10″ | 445 | 47.7 | 321 | 277.4 | 95 | 16 | 28.57 | 387.4 |
| 12″ | 520 | 50.8 | 375 | 328.2 | 102 | 16 | 31.75 | 450.8 |
| 14″ | 585 | 54.0 | 425 | 360.2 | 111 | 20 | 31.75 | 514.4 |
| 16″ | 650 | 57.2 | 483 | 411.2 | 121 | 20 | 34.29 | 571.5 |
| 18″ | 710 | 60.4 | 533 | 462.3 | 130 | 24 | 34.29 | 628.6 |
| 20″ | 775 | 63.5 | 587 | 514.4 | 140 | 24 | 34.29 | 685.8 |
| 24″ | 915 | 69.9 | 702 | 616.0 | 152 | 24 | 41.27 | 812.8 |
| Pipe Size | 150 # | 300 # | 600 # | 900 # | 1500 # | 2500 # | ||||||||||||
| WN | SO | BLD | WN | SO | BLD | WN | SO | BLD | WN | SO | BLD | WN | SO | BLD | WN | SO | BLD | |
| 1/2″ | 2 | 1 | 1 | 2 | 1 | 1 | 2 | 2 | 2 | SEE 1500 # WEIGHTS | 5 | 4 | 4 | 7 | 7 | 7 | ||
| 3/4″ | 2 | 2 | 2 | 3 | 3 | 3 | 4 | 3 | 3 | SEE 1500 # WEIGHTS | 6 | 5 | 6 | 8 | 8 | 8 | ||
| 1″ | 3 | 2 | 2 | 4 | 3 | 3 | 4 | 4 | 4 | SEE 1500 # WEIGHTS | 9 | 8 | 8 | 12 | 11 | 11 | ||
| 1 1/2″ | 4 | 3 | 3 | 7 | 6 | 6 | 8 | 7 | 8 | SEE 1500 # WEIGHTS | 13 | 12 | 13 | 25 | 22 | 23 | ||
| 2″ | 6 | 5 | 5 | 9 | 7 | 8 | 12 | 9 | 10 | SEE 1500 # WEIGHTS | 25 | 25 | 25 | 42 | 37 | 39 | ||
| 2 1/2″ | 8 | 7 | 7 | 12 | 10 | 12 | 18 | 13 | 15 | SEE 1500 # WEIGHTS | 36 | 36 | 35 | 52 | 55 | 56 | ||
| 3″ | 10 | 8 | 9 | 15 | 13 | 16 | 23 | 16 | 20 | 31 | 26 | 29 | 48 | 48 | 48 | 94 | 83 | 86 |
| 4″ | 15 | 13 | 17 | 25 | 22 | 27 | 42 | 37 | 41 | 53 | 53 | 54 | 73 | 73 | 73 | 145 | 125 | 130 |
| 5″ | 19 | 15 | 20 | 32 | 28 | 35 | 68 | 63 | 68 | 86 | 83 | 87 | 130 | 130 | 140 | 245 | 210 | 225 |
| 6″ | 24 | 19 | 26 | 42 | 39 | 50 | 81 | 80 | 86 | 110 | 110 | 115 | 165 | 165 | 160 | 380 | 325 | 345 |
| 8″ | 39 | 30 | 45 | 67 | 58 | 81 | 120 | 115 | 140 | 175 | 170 | 200 | 275 | 260 | 300 | 580 | 485 | 530 |
| 10″ | 52 | 43 | 70 | 91 | 81 | 124 | 190 | 170 | 230 | 260 | 245 | 290 | 455 | 435 | 510 | 1075 | 930 | 1025 |
| 12″ | 80 | 64 | 110 | 140 | 115 | 185 | 225 | 200 | 295 | 325 | 325 | 415 | 690 | 580 | 690 | 1525 | 1100 | 1300 |
| 14″ | 110 | 90 | 140 | 180 | 165 | 250 | 280 | 230 | 355 | 400 | 400 | 520 | 940 | NA | 975 | NA | NA | NA |
| 16″ | 140 | 98 | 180 | 250 | 190 | 295 | 390 | 330 | 495 | 495 | 425 | 600 | 1250 | NA | 1300 | NA | NA | NA |
| 18″ | 150 | 130 | 220 | 320 | 250 | 395 | 475 | 400 | 630 | 680 | 600 | 850 | 1625 | NA | 1750 | NA | NA | NA |
| 20″ | 180 | 165 | 285 | 400 | 315 | 505 | 590 | 510 | 810 | 830 | 730 | 1075 | 2050 | NA | 2225 | NA | NA | NA |
| 22″ | 225 | 185 | 355 | 465 | 370 | 640 | 720 | 590 | 1000 | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| 24″ | 260 | 220 | 430 | 580 | 475 | 790 | 830 | 730 | 1250 | 1500 | 1400 | 2025 | 3325 | NA | 3625 | NA | NA | NA |
Yes, we offer custom sizes for Loose Flanges to meet specific project needs. Our team at Ting Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@tingflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
