Ting Flanges, a reputable manufacturer and supplier located in Manila, Philippines, is well-known for crafting top-notch Expander Flanges that adhere to international standards. These flanges are designed to seamlessly connect pipes of varying diameters without the need for a separate reducer, promoting smooth flow and minimizing turbulence. Built with precision and durability in mind, Ting Flanges’ products find their way into a variety of industrial sectors, including oil and gas, petrochemical, and power generation. With a strong focus on quality, reliability, and timely delivery, Ting Flanges offers robust Expander Flanges that are perfect for high-performance piping systems around the globe.

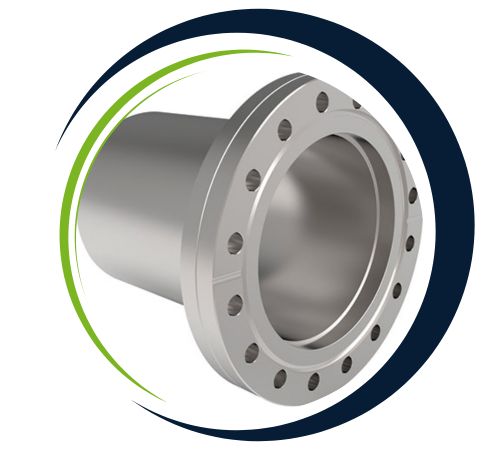

Typically, Expander Flanges are constructed from materials like stainless steel, carbon steel, alloy steel, or duplex, depending on the specific application needs. They boast impressive mechanical properties, featuring a tensile strength that ranges from 400 to 700 MPa, along with high yield strength to withstand pressure. The solid design of these flanges guarantees outstanding durability, resistance to corrosion, and structural integrity, even in high-temperature or high-pressure situations. These mechanical traits make Expander Flanges a great choice for critical and heavy-duty piping applications.
| Size | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Expander Face (FF) |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |

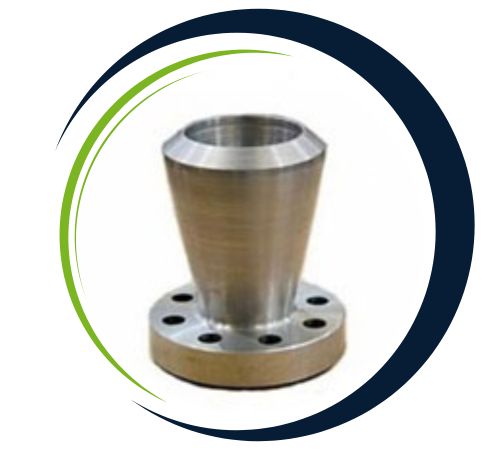

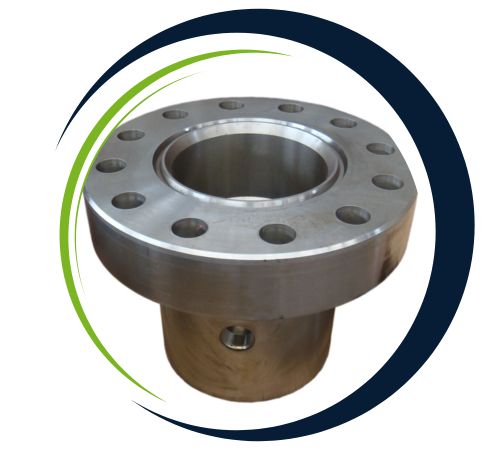

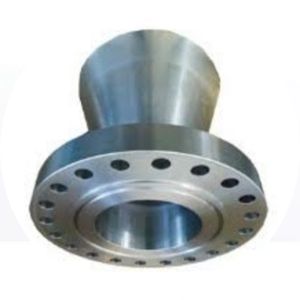

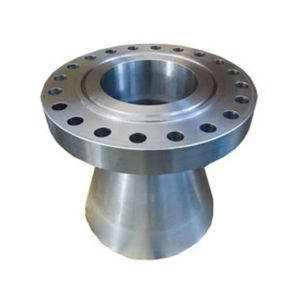

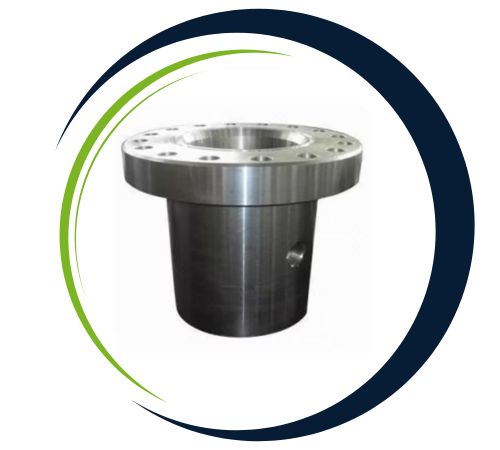

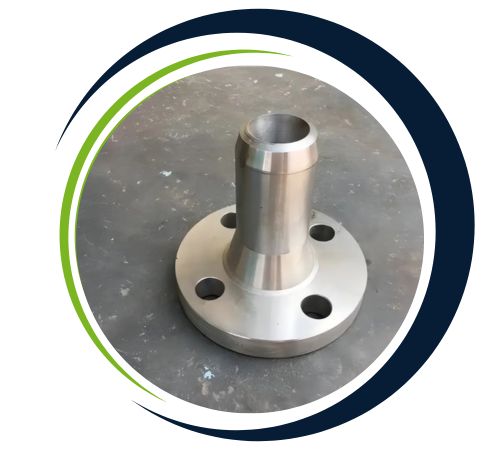

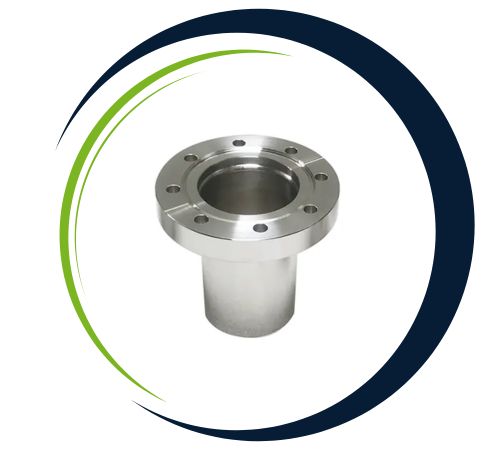

| Material | Titanium Expander Flange, Incoloy Expander Flange, Monel Expander Flange, Nickel Alloy Expander Flange, SMO 254 Expander Flange, Brass Expander Flange, Stainless Steel Expander Flange, AISI 4130 Expander Flange, Inconel Expander Flange, Duplex Steel Expander Flange, Hastelloy Expander Flange, Alloy 20 Expander Flange, Copper Nickel Expander Flange, Super Duplex Expander Flange. |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Ting Flanges, a leading supplier in Manila, Philippines, offers an extensive selection of Expander Flange, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
You’ll often find Expander Flanges in industries where it’s essential to efficiently join pipes of different diameters, such as in oil and gas refineries, power plants, petrochemical facilities, and offshore installations. They eliminate the need for reducers, which simplifies both system design and installation. Thanks to their sturdy construction and resistance to corrosion, they’re well-suited for high-pressure, high-temperature, and corrosive environments. Expander Flanges also play a vital role in water treatment, shipbuilding, and energy sectors, ensuring smooth fluid flow, enhanced connection strength, and long-lasting performance of the systems they’re part of.
| Normal Pipe Sizes | Outside Flange Diameter A | Raised Face Diameter B | Flange Thickness C | Bore Diameter
| Bore Diameter
| Hub Diameter at Weld
| Diameter of Hub at Base
| Hub Length
| Compound Taper Â
| Slope at Bevel
| No. of Bolt Holes | Bolt Holes Diameter | Diameter Of Bolt Circle
| Approx. Weight in kg (lb) | Design Type |
| 2 x 3 | 6 | 3 5/8 | 3/4 | 2.067 | 3.068 | 3.500 | 3 1/16 | 2 1/2 | – | 16° | 4 | 3/4 | 4 3/4 | 6 | A |
| 2 x 4 | 6 | 3 5/8 | 3/4 | 2.067 | 4.026 | 4.500 | 3 1/16 | 3 5/8 | 1/2 | 29° * | 4 | 3/4 | 4 3/4 | 6 | C |
| 3 x 4 | 7 1/2 | 5 | 15/16 | 3.068 | 4.026 | 4.500 | 4 1/4 | 2 3/4 | – | 15° | 4 | 3/4 | 6 | 11 | A |
| 4 x 6 | 9 | 6 3/16 | 15/16 | 4.026 | 6.065 | 6.625 | 5 5/16 | 3 1/4 | 1/2 | 30° * | 8 | 3/4 | 7 1/2 | 15 | C |
| 6 x 8 | 11 | 8 1/2 | 1 | 6.065 | 7.981 | 8.625 | 7 9/16 | 4 | 1/2 | 28° * | 8 | 7/8 | 9 1/2 | 24 | C |
| 8 x 10 | 13 1/2 | 10 5/8 | 1 1/8 | 7.981 | 10.020 | 10.750 | 9 11/16 | 4 | 1/2 | 29° * | 8 | 7/8 | 11 3/4 | 39 | C |
| 8 x 12 | 13 1/2 | 10 5/8 | 1 1/8 | 7.981 | 12.000 | 12.750 | 9 11/16 | 6 | 1/2 | 29° * | 8 | 7/8 | 11 3/4 | 39 | C |
| 10 x 12 | 16 | 12 3/4 | 1 3/16 | 10.020 | 12.000 | 12.750 | 12 | 3 15/16 | 1/2 | 39° * | 12 | 1 | 14 1/4 | 52 | C |
| 10 x 14 | 16 | 12 3/4 | 1 3/16 | 10.020 | 13.250 | 14.000 | 12 | 5 7/16 | 5/8 | 30° * | 12 | 1 | 14 1/4 | 52 | C |
| 12 x 14 | 19 | 15 | 1 1/4 | 12.000 | 13.250 | 14.000 | 14 3/8 | 4 1/2 | – | 11° | 12 | 1 | 17 | 80 | D |
| 12 x 16 | 19 | 15 | 1 1/4 | 12.000 | 15.250 | 16.000 | 14 3/8 | 4 13/16 | 5/8 | 30° * | 12 | 1 | 17 | 80 | C |
| 14 x 16 | 21 | 16 1/4 | 1 3/8 | 13.250 | 15.250 | 16.000 | 15 3/4 | 5 | – | 15° | 12 | 1 1/8 | 18 3/4 | 120 | A |
| 14 x 18 | 21 | 16 1/4 | 1 3/8 | 13.250 | 17.250 | 18.000 | 15 3/4 | 5 11/16 | 5/8 | 30° * | 12 | 1 1/8 | 18 3/4 | 120 | C |
| 18 x 20 | 25 | 21 | 1 9/16 | 17.250 | 19.250 | 20.000 | 19 7/8 | 5 1/2 | – | 14° | 16 | 1 1/4 | 22 3/4 | 140 | A |
| 18 x 24 | 25 | 21 | 1 9/16 | 17.250 | 23.250 | 24.000 | 19 7/8 | 8 13/16 | 5/8 | 28° * | 16 | 1 1/4 | 22 3/4 | 140 | C |
| 20 x 24 | 27 1/2 | 23 | 1 11/16 | 19.250 | 23.250 | 24.000 | 22 | 6 7/16 | 5/8 | 30° * | 20 | 1 1/4 | 25 | 170 | C |
| 24 x 30 | 32 | 27 1/4 | 1 7/8 | 23.250 | 29.250 | 30.000 | 26 1/8 | 8 11/16 | 3/4 | 30° * | 20 | 1 3/8 | 29 1/2 | 260 | C |
| Normal Pipe Sizes | Outside Flange Diameter A | Raised Face Diameter B | Flange Thickness C | Bore Diameter Of D | Diameter of Bore D2 | Diameter of Hub at Weld H | Diameter of Hub at Base J | Hub Length K | Compound Taper CT | Slope at Bevel SB | No. of Bolt Holes | Bolt Holes Diameter | Diameter Bolt Circle P | Approx. Weight in kg (lb) | Design Type |
| 2 x 3 | 6 1/2 | 3 5/8 | 7/8 | 2.067 | 3.068 | 2.375 | 3 5/16 | 2 3/4 | – | 15° | 8 | 3/4 | 5 | 9 | A |
| 2 x 4 | 6 1/2 | 3 5/8 | 7/8 | 2.067 | 4.026 | 2.375 | 3 5/16 | 2 3/4 | 1/2 | 29° * | 8 | 3/4 | 5 | 9 | C |
| 3 x 4 | 8 1/4 | 5 | 1 1/8 | 3.068 | 4.026 | 3.500 | 4 5/8 | 3 1/8 | – | 13° | 8 | 7/8 | 6 5/8 | 15 | D |
| 4 x 6 | 10 | 6 3/16 | 1 1/4 | 4.026 | 6.065 | 4.500 | 5 3/4 | 3 3/8 | 1/2 | 30° * | 8 | 7/8 | 7 7/8 | 25 | C |
| 6 x 8 | 12 1/2 | 8 1/2 | 1 7/16 | 6.065 | 7.981 | 6.625 | 8 1/8 | 3 7/8 | 1/2 | 22° * | 12 | 7/8 | 10 5/8 | 42 | B |
| 8 x 10 | 15 | 10 5/8 | 1 5/8 | 7.981 | 10.020 | 8.625 | 10 1/4 | 4 3/8 | – | 20° | 12 | 1 | 13 | 67 | A |
| 10 x 12 | 17 1/2 | 12 3/4 | 1 7/8 | 10.020 | 12.000 | 10.750 | 12 5/8 | 4 5/8 | – | 20° | 16 | 1 1/8 | 15 1/4 | 91 | A |
| 12 x 14 | 20 1/2 | 15 | 2 | 12.000 | 13.250 | 12.750 | 14 3/4 | 5 1/8 | – | 11° | 16 | 1 1/4 | 17 3/4 | 138 | D |
| 14 x 16 | 23 | 16 1/4 | 2 1/8 | 13.250 | 15.250 | 14.000 | 16 3/4 | 5 5/8 | – | 16° | 20 | 1 1/4 | 20 1/4 | 186 | D |
| 16 x 18 | 25 1/2 | 18 1/2 | 2 1/4 | 15.250 | 17.250 | 16.000 | 19 | 5 3/4 | – | 16° | 20 | 1 3/8 | 22 1/2 | 246 | D |
| 18 x 20 | 28 | 21 | 2 3/8 | 17.250 | 19.250 | 18.000 | 21 | 6 1/4 | – | 14° | 24 | 1 3/8 | 24 3/4 | 305 | D |
| 20 x 24 | 30 1/2 | 23 | 2 1/2 | 19.250 | 23.250 | 20.000 | 23 1/8 | 6 3/8 | 5/8 | 29° * | 24 | 1 3/8 | 27 | 378 | B |
| 24 x 30 | 36 | 27 1/4 | 2 3/4 | 23.250 | 29.250 | 24.000 | 27 5/8 | 6 5/8 | 3/4 | 30° * | 24 | 1 5/8 | 32 | 545 | B |
Yes, we offer custom sizes for Expander Flange to meet specific project needs. Our team at Ting Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@tingflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
