ing Flanges, is a Manila, Philippines based company that supplies and manufactures a variety of high-quality Duplex Steel Flanges S32205. The company stands out for its skills, making use of the most up-to-date methods, perfect materials, and strict adherence to international standards. The flanges that Ting Flanges makes out of Top Grade duplex stainless steel with modern manufacturing techniques give off characteristics like incredible tensile strength, prolonged service life, and rust resistance.Additionally, by concentrating on innovation, dependability, and customer satisfaction, Ting Flanges is able to provide the most effective and durable flange solutions to not only the local industry in the Philippines but also to the global market, thus, they are able to guarantee performance that can be depended upon in industrial environments that are of the utmost criticality.
The main elements of Duplex Steel Flanges S32205 include chromium (21–23%), nickel (4.5–6.5%), and molybdenum (2.5–3.5%), and the microstructure of the product is ferritic-austenitic, which accounts for the high corrosion resistance and mechanical strength. The tensile strength of these materials ranges from 620 to 850 MPa and the yield strength is between 450 and 550 MPa. The flanges are extremely resistant to pitting, crevice corrosion, and chloride stress-corrosion cracking.Moreover, these excellent devices are easily weldable, have high impact strength, and they maintain their structural integrity under high-pressure and high-temperature conditions, thus, they are typical in demanding industrial applications requiring these characteristics.
| Specification | ASTM A182 / ASME SA182 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |

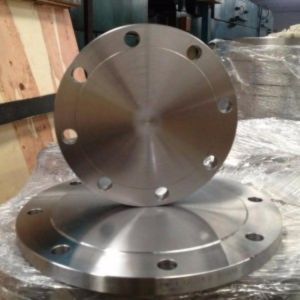

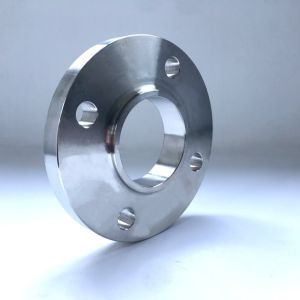

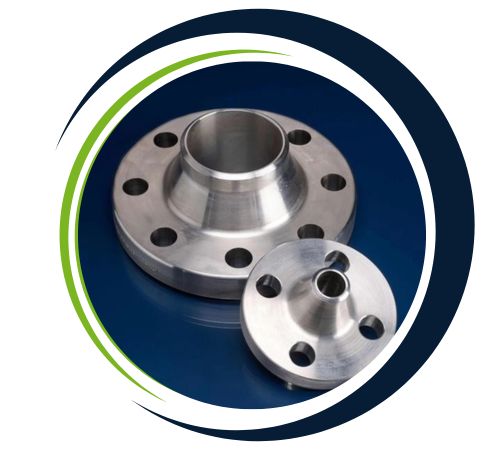

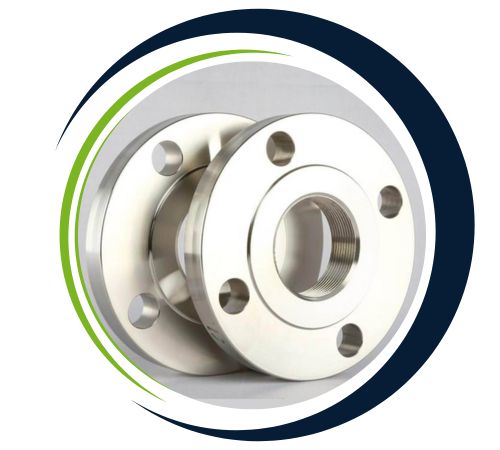

Ting Flanges, a leading supplier in Manila, Philippines, offers an extensive selection of Duplex Steel Flanges S32205, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Duplex Steel Flanges S32205 are being extensively utilized in sectors like oil and gas, petrochemical, power generation, marine, and desalination. They are perfectly suited to the task of interconnecting pipes, valves, and pumps in the systems that are operating under the condition of high-pressure, high-temperature, and corrosive environments. In the case of offshore platforms and chemical processing plants, seawater piping systems, and heat exchangers, these are the most common, and their job is to provide the connection which is necessary. Apart from that, excellent strength-to-weight ratio along with resistance to corrosion make it possible for the products to be used in harsh operational conditions such as these. The use of Duplex Steel Flanges S32205 ensures tight connections, durability, and performance that can be trusted at the times when the industry and engineering applications are at their most critical.
| STANDARD | UNS | WERKSTOFF NR. |
| Duplex Steel S32205 | s32205 | 1.4462 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| Duplex S32205 | 0.030 max | 2 max | 1 max | 0.030 max | 0.020 max | 21 – 23 | 2.50 – 3.50 | 4.50 – 6.50 | 0.8 – 0.20 | Bal |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 116000 , MPa – 800 | Psi – 80000 , MPa – 550 | 15 % |
Yes, we offer custom sizes for Duplex Steel Flanges S32205 to meet specific project needs. Our team at Ting Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@tingflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
