Ting Flanges, located in Manila, Philippines, stands out as a top manufacturer and supplier of Carbon Steel F56 Flanges, engineered to excel in high-pressure and high-temperature settings. Made from high-quality carbon steel and utilizing cutting-edge manufacturing methods, these flanges promise strength, durability, and reliability even in the toughest conditions. Ting Flanges adheres to strict international quality standards, ensuring precision, consistency, and a long lifespan for their products. Their Carbon Steel F56 Flanges are commonly found in the oil and gas, petrochemical, and power generation sectors, providing reliable sealing and structural integrity for critical industrial systems around the globe.
These Carbon Steel F56 Flanges are primarily made up of carbon, manganese, silicon, sulfur, and phosphorus, creating a well-balanced mix of strength and ductility. They boast impressive tensile strength, typically around 530 MPa, along with high yield strength and excellent elongation properties. Heat treatment further boosts their mechanical performance, enhancing toughness, hardness, and resistance to corrosion and wear. Thanks to their chemical makeup and mechanical stability, Carbon Steel F56 Flanges are perfectly suited to handle the varying pressure and temperature conditions found in demanding industrial environments.
| Material Specification Of : | ASTM A694 F56 Flanges |
|---|---|
| Pressure Rating | Class 150 To Class 2500 |
| High Temperature | Above 200°C (400°F) For Class 150 Or Above 400°C (750°F) |
| Low Temperature | Above -29 Degree C (−20°F) |
| Common Types Of Flanges: | Slip On (SORF), Weld Neck (WNRF), Blind (BLRF), Lap Joint (Loose), Threaded (NPT), Socket-Weld (SWRF) |
| Special Types Of Flanges : | Nipoflange, Elboflange, Latroflange, Swivel Flange, Expanding Flange, Reducing Flange, Weldoflange |
| Marking Standard | Name of Manufacturer Schedule Type of Flange Facing Nominal Pipe Size Pressure Class ASME B16 Designation |
| Bolt Type | high strength bolts medium strength bolts low strength bolts |
| Standard Cover : | pressure ratings & temperature ratings, materials, marking, dimensions, weight, tolerances, testing |
| Contact Faces | RTJ (Ring Type Joint), FF (Flat Face), RF (Raised Face), T/G (Tongue And Groove ), M/F (Male And Female) |
| Size Chart | Normal Pipe Size 1/2 to NPS 24″ |
| Thickness | Normal Pipe Size ≤ 18 |
| Bore Diameter | Normal Pipe ≤ 10 |
| Flanges Standards | EN 1092-1, JIS, ASME B16.5, ASME B16.47 type A, UNI, DIN |
| European Standard Flanges | JIS B2220 Flanges (5k to 30k) and KS1503 flanges |
| Russian-Standard Flanges | GOST 12820 / 12821-80, DIN, UNI, EN 1092-1 |
| South African Standard Flanges | SANSflanges And SABS flanges |
| Surface Finish | smooth, concentric serrated, stock |
| Gaskets Types | Full Face Gasket Flat Ring Gasket Metallic Ring Gakset |
| Advantages Of Pipe Flange | Used to Connect Pipe System Easy Repair Pipe System Assembled Without Welding |
| Carbon [C] | ≤0.30 |
| Manganese [Mn] | ≤1.60 |
| Phosphorus [P] | ≤0.025 |
| Sulfur [S] | ≤0.025 |
| Silicon [Si] | 0.15-0.35 |
| Element | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| ASTM A694 F56 Flanges | 415 | 315 | 20 % |

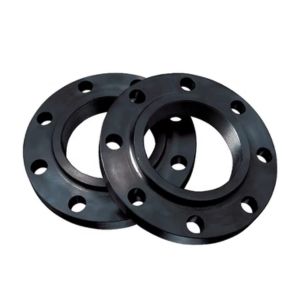

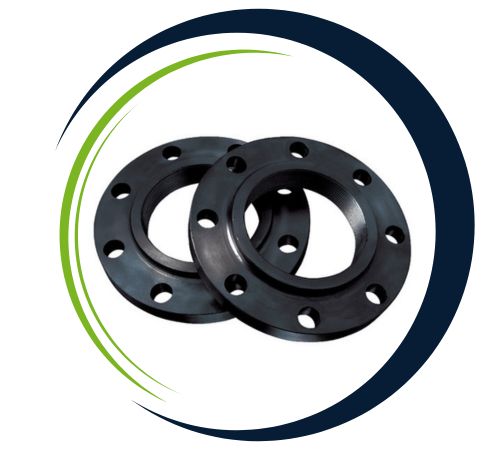

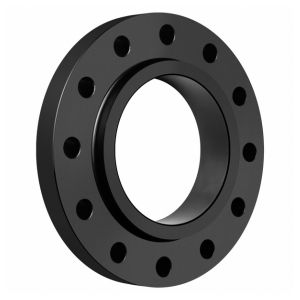

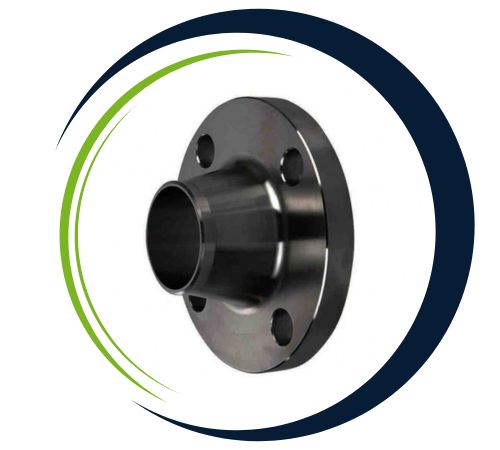

Ting Flanges, a leading supplier in Manila, Philippines, offers an extensive selection of Carbon Steel F56 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
You’ll find Carbon Steel F56 Flanges widely used in oil and gas pipelines, chemical processing facilities, power generation systems, and offshore drilling rigs. They are perfect for connecting pipelines, valves, and pressure vessels, ensuring leak-proof and secure joints even under high stress. Their outstanding mechanical strength and corrosion resistance make them ideal for both onshore and subsea applications. Additionally, these flanges are utilized in shipbuilding and water treatment plants, where durability and reliability are crucial. Carbon Steel F56 Flanges deliver exceptional performance and safety in vital industrial operations.
Yes, we offer custom sizes for Carbon Steel F56 Flanges to meet specific project needs. Our team at Ting Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@tingflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
