Ting Flanges, located in Manila, Philippines, stands out as a leading manufacturer and supplier of Carbon Steel F46 Flanges, celebrated for their exceptional strength, durability, and precision engineering. Crafted from high-quality carbon steel and utilizing cutting-edge technology, these flanges are designed to meet international performance and reliability standards. Built to endure high pressure and temperature conditions, Carbon Steel F46 Flanges are perfect for critical industrial applications. Ting Flanges is committed to providing top-notch flanges that guarantee secure, leak-free connections across various sectors, including oil and gas, petrochemical, power generation, and construction.
These flanges are primarily made up of carbon, manganese, phosphorus, sulfur, and silicon, striking a remarkable balance between strength and ductility. With impressive tensile strength ranging from 485 MPa to 620 MPa, they also showcase high yield strength and good elongation. The blend of carbon and other alloying elements boosts their hardness, toughness, and resistance to wear and impact. Thanks to precise heat treatment, their refined mechanical properties make them dependable in pressure-heavy environments and systems with fluctuating temperatures.
Specifications : ASTM A694 / ASME SA694, A694N
Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Grades : Carbon Steel F46
Size : 1/2″ to 48″
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
| Grade | C | Mn | P | S | Si |
| F46 | ≤0.30 | ≤1.60 | ≤0.025 | ≤0.025 | 0.15-0.35 |
| ASTM A694 Grade | Yield Strength min. | Tensile Strength min. | Elongation min. | ||
|---|---|---|---|---|---|
| MPa | ksi | MPa | ksi | % | |
| F46 | 315 | 46 | 415 | 60 | 20 |

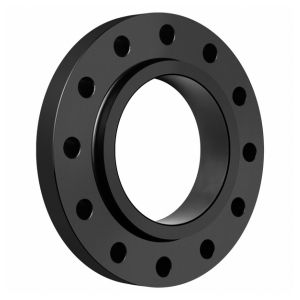

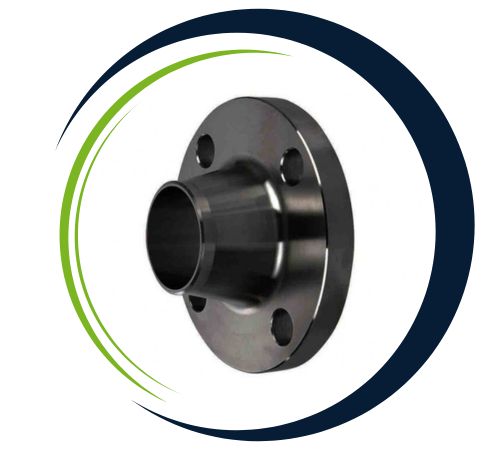

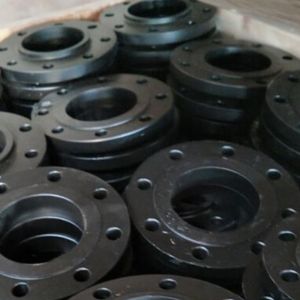

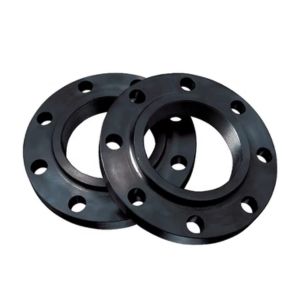

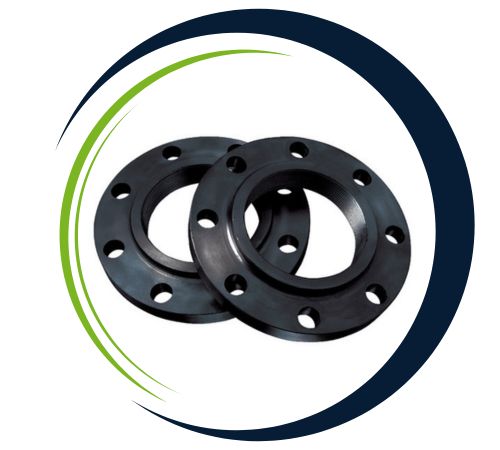

Ting Flanges, a leading supplier in Manila, Philippines, offers an extensive selection of Carbon Steel F46 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Carbon Steel F46 Flanges find extensive use in industries like oil and gas, chemical processing, shipbuilding, and power generation. They are ideal for connecting pipelines, valves, and equipment in high-pressure and high-temperature settings. Their durability and resistance to corrosion make them suitable for both onshore and offshore applications. Commonly found in refineries, water treatment facilities, and mechanical systems that require secure, leak-proof connections, these flanges are a go-to choice for long-term industrial use in challenging operational conditions, thanks to their robustness and cost-effectiveness.
Yes, we offer custom sizes for Carbon Steel F46 Flanges to meet specific project needs. Our team at Ting Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@tingflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
