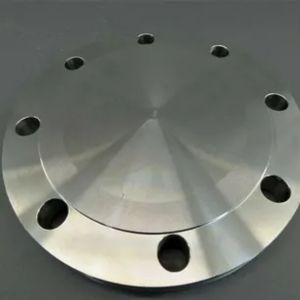

Ting Flanges, located in Manila, Philippines, stands out as a top manufacturer and supplier of premium industrial flanges, with a focus on Alloy Steel Lap Joint Flanges. Renowned for their precision engineering, durability, and adaptable designs, Ting Flanges serves industries that need reliable and easy-to-install piping solutions. Their Alloy Steel Lap Joint Flanges are crafted to meet international standards, guaranteeing consistent performance in chemical, oil and gas, and high-temperature settings. With a strong commitment to quality, timely delivery, and customer satisfaction, Ting Flanges has built a solid reputation as a trusted supplier for industrial piping systems throughout the Philippines and beyond.
Alloy Steel Lap Joint Flanges are made from a mix of elements including chromium, molybdenum, and nickel, offering enhanced strength, toughness, and corrosion resistance. These flanges typically contain 0.25-0.55% carbon, 0.80-2.0% chromium, and 0.15-0.25% molybdenum, which contributes to their mechanical properties, such as high tensile strength (around 600 MPa) and good impact resistance. Advantages include ease of assembly and disassembly, making them ideal for systems requiring frequent maintenance or realignment. Their design allows flexibility and cost savings in pipeline installations, especially in corrosive or high-pressure environments.
| Specification | ASTM A182 / ASME SA182 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MAlloy S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| PRESSURE Rating ANSI | Class 150 LBS, 300 LBS, f1 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| PRESSURE Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Prealloy-steel machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MAlloy SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MAlloy SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MAlloy SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| Grades | Alloy Steel F1, F5, F9, F11, F22, F91 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
The Alloy Steel Lap Joint Flanges from Ting Flanges are produced using carefully chosen alloy steel, which provides outstanding mechanical strength, toughness, and resistance to corrosion. These flanges typically boast a tensile strength ranging from 60,000 to 85,000 psi, a yield strength of 35,000 to 50,000 psi, and an elongation of 20 to 35%. This impressive performance allows them to endure high-pressure and high-temperature conditions. The specific alloy composition ensures durability and wear resistance, making these flanges perfect for critical applications where piping alignment and frequent disassembly are necessary.
Alloy Steel Lap Joint Flanges are widely used in applications requiring frequent disassembly, alignment, or maintenance, making them ideal for industries like oil & gas, petrochemical, and water treatment. These flanges are typically paired with a stub end, allowing the flange to rotate freely, which simplifies alignment during installation. They’re particularly useful in piping systems prone to corrosion or high-pressure conditions, as they enable quick replacements and adjustments without disrupting the entire system. Their design provides flexibility and cost-efficiency in long-term maintenance and operations.
Ting Flanges’ Alloy Steel Lap Joint Flanges find extensive use in sectors such as chemical processing, power generation, oil and gas, pharmaceuticals, and food processing. Their innovative design facilitates easy assembly and disassembly, making them ideal for systems that require regular inspection or maintenance. These flanges ensure reliable connections, minimize stress on pipelines, and guarantee leak-proof performance. Known for their strength, precision, and longevity, Ting Flanges’ Alloy Steel Lap Joint Flanges provide efficient and dependable performance in demanding industrial piping networks.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
