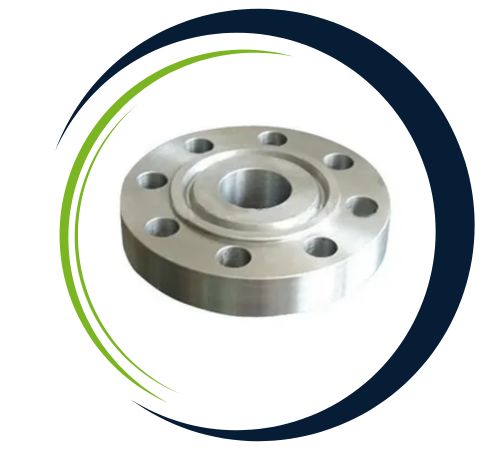

Ting Flanges is a reliable manufacturer and supplier of top-notch Alloy Steel Flat Flanges based in Manila, Philippines, serving a wide range of industrial needs. Renowned for their precision engineering and durability, these flanges are crafted to perform exceptionally well in high-pressure and high-temperature settings. Ting Flanges provides Alloy Steel Flat Flanges in various sizes and pressure ratings, making them suitable for piping systems across different industries. With a strong focus on quality craftsmanship, timely delivery, and customer satisfaction, Ting Flanges guarantees that every product adheres to international standards, ensuring reliable, leak-proof connections for essential industrial operations.
Alloy Steel Flat Flanges are generally made from a mix of elements like chromium, molybdenum, nickel, and manganese, which boost their strength and resistance to corrosion. They showcase impressive tensile strength, excellent hardness, and remarkable toughness, making them perfect for demanding applications. These flanges also offer outstanding creep and oxidation resistance at high temperatures, ensuring they last and remain stable under pressure. Their mechanical properties, including high yield strength and good ductility, enable secure and efficient performance in tough environments, making them suitable for both high-pressure and high-temperature service conditions.
| Specification | ASTM A182 / ASME SA182 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM A182 F9 Alloy Steel Flanges The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| Grades | Alloy Steel F5, F1, F11, F22, F91, F9 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Ting Flanges, a leading supplier in Manila, Philippines, offers an extensive selection of Alloy Steel Flat Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Alloy Steel Flat Flanges find extensive use in industries such as oil and gas, petrochemical, power generation, and marine engineering. They are mainly used to connect pipes, valves, pumps, and other equipment, forming sealed piping systems. Their flat face design guarantees uniform contact and even pressure distribution, minimizing the risk of leaks. These flanges are perfect for low to moderate pressure applications and systems that handle corrosive fluids or high temperatures. Commonly found in refineries, chemical plants, and steam lines, Alloy Steel Flat Flanges deliver reliable performance and easy maintenance in critical industrial operations.
Yes, we offer custom sizes for Alloy Steel Flat Flanges to meet specific project needs. Our team at Ting Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@tingflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
